Routing Profiles

In this article, you'll learn how to add routing profiles to your account, ensuring drivers follow directions based on specific vehicle dimensions.

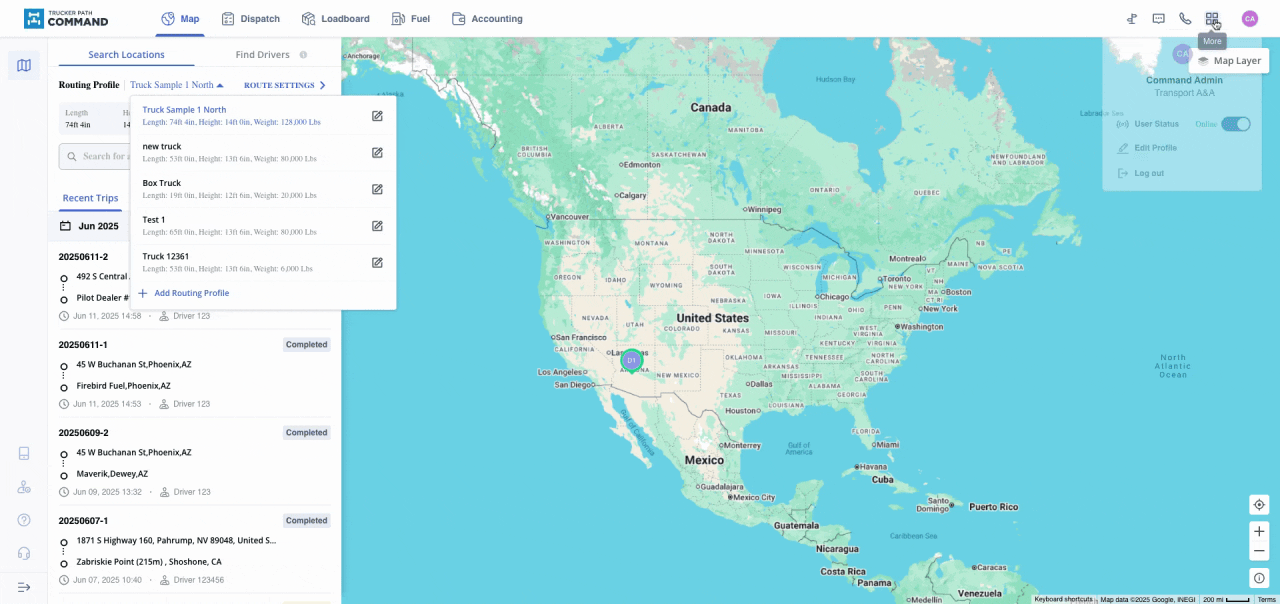

Step 1: Begin by clicking on the More tab located in the upper right hand corner of your screen. Then select Routing Profile.

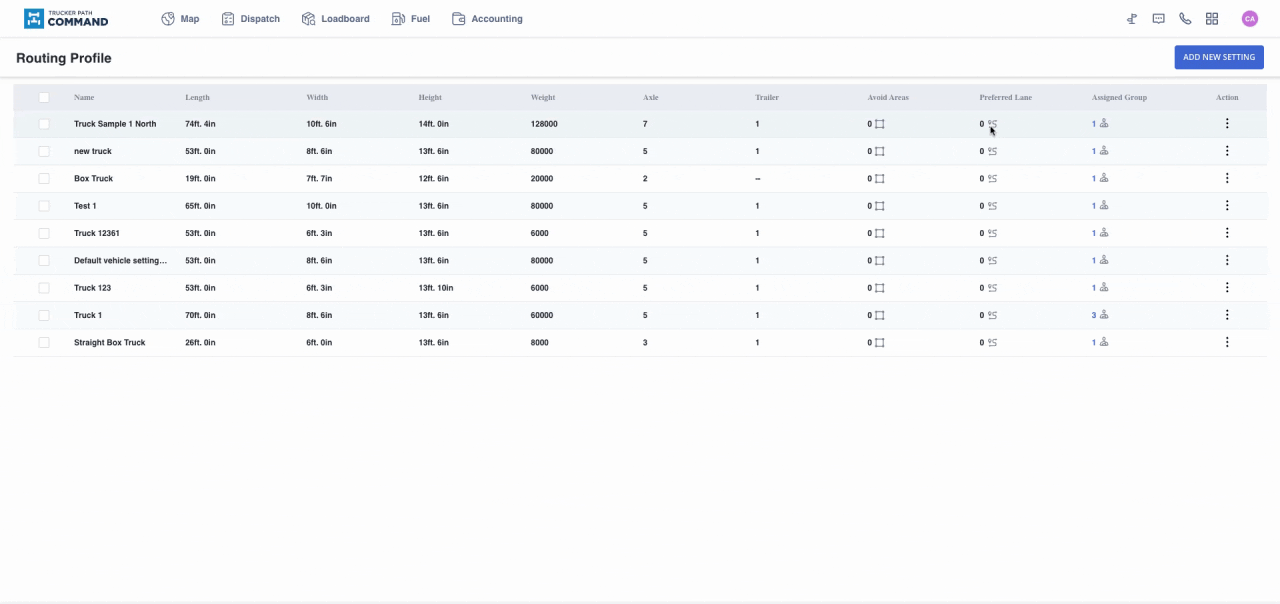

Step 2: You'll see a list of all current routing profiles in your system. To add a new one, click on Add New Setting.

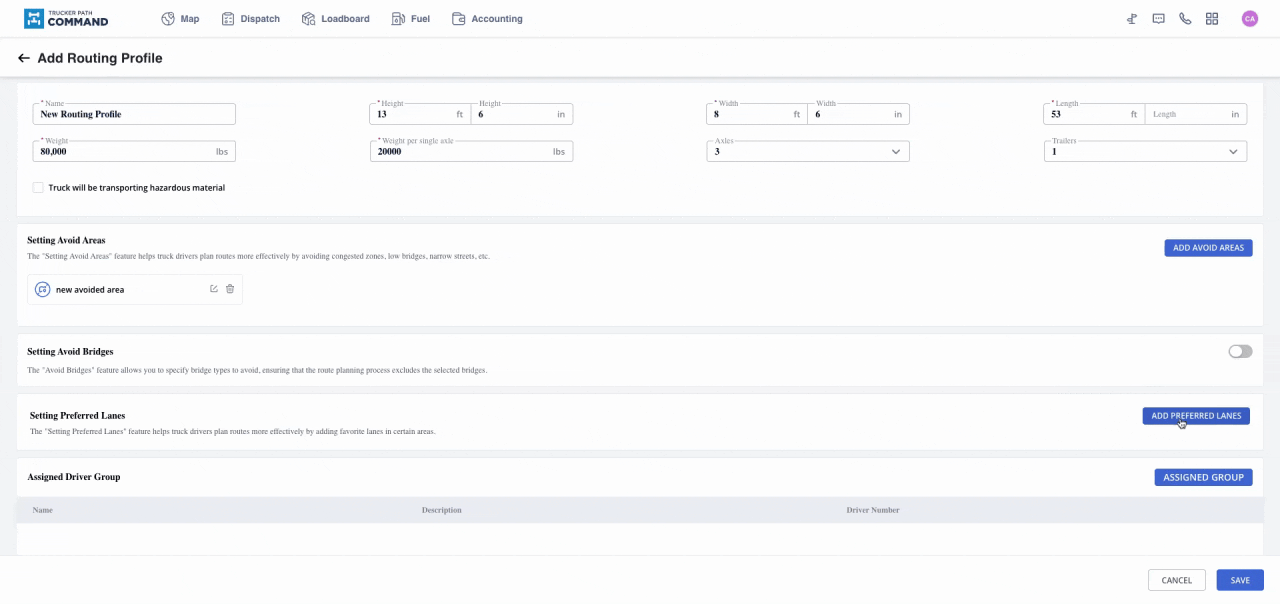

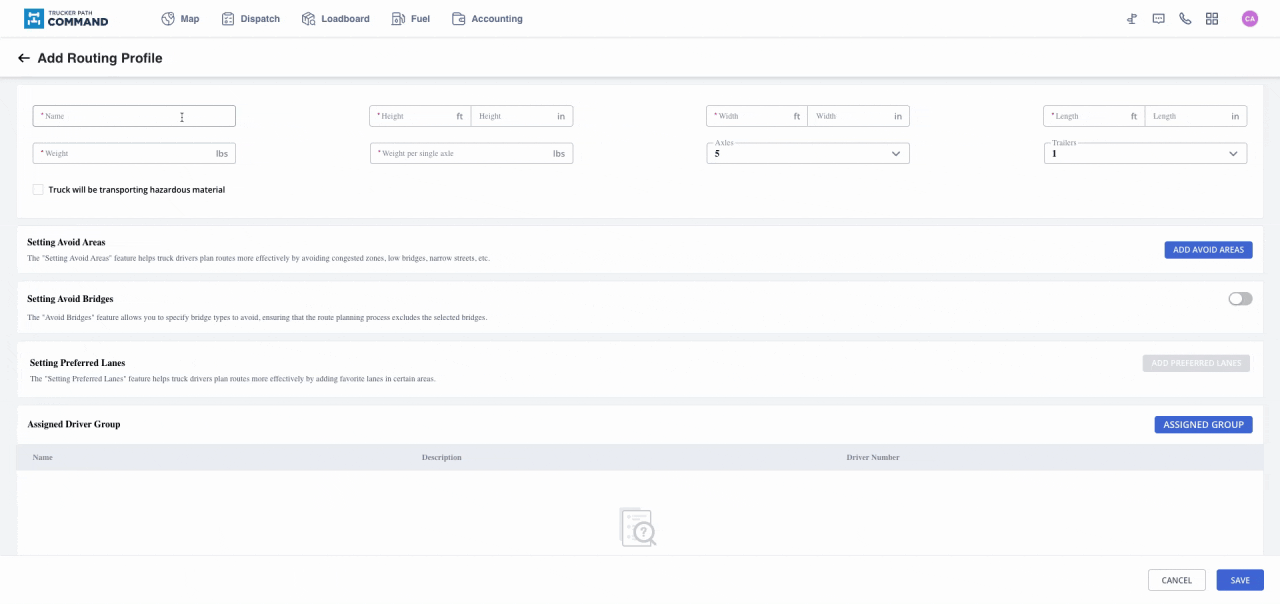

Step 3: Name your routing profile and enter the vehicle's height, weight, width, and length for the max weight. You can also adjust the axles and number of trailers.

Step 4: If your truck transports hazardous material, select the corresponding option. This will adjust the routing accordingly.

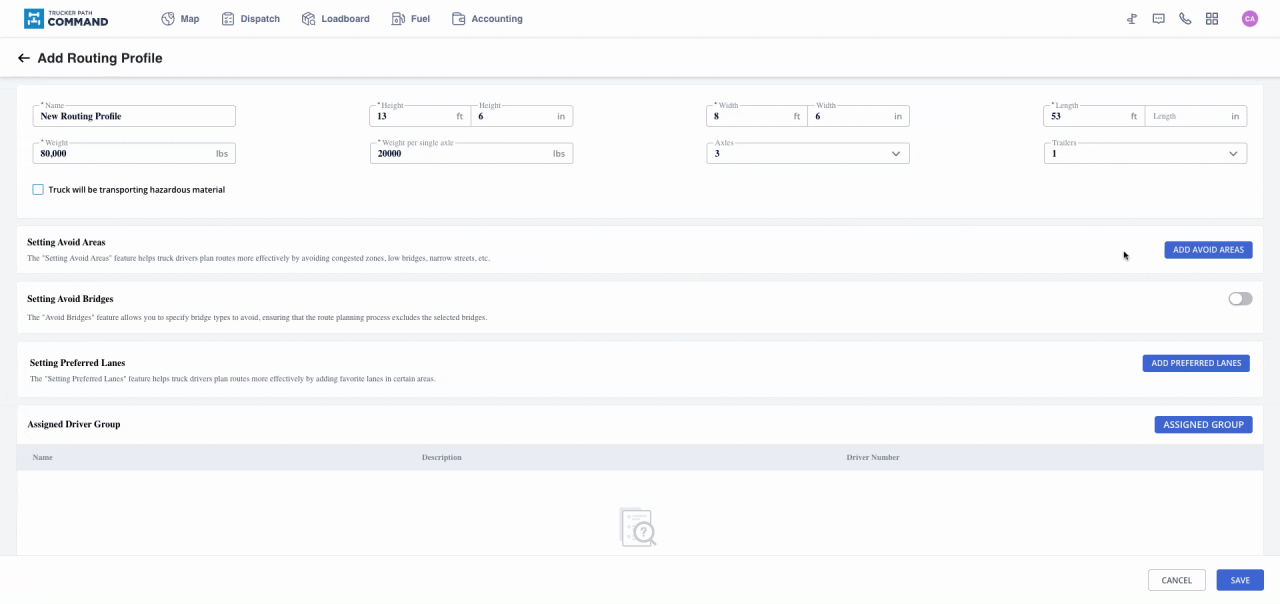

Step 5: Use the Avoid areas feature to add areas you want to avoid. Click on Add Avoid Areas.

Step 6: Name the area you want to avoid and click Save.

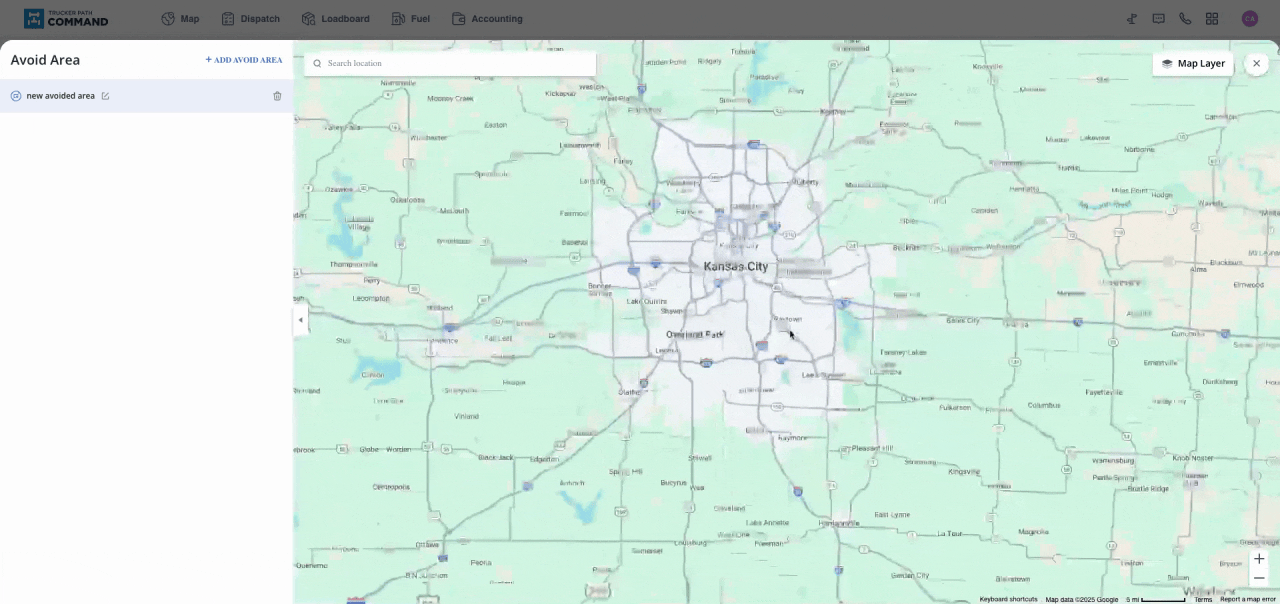

Step 7: Click on the map and then click Add. A red square will appear.

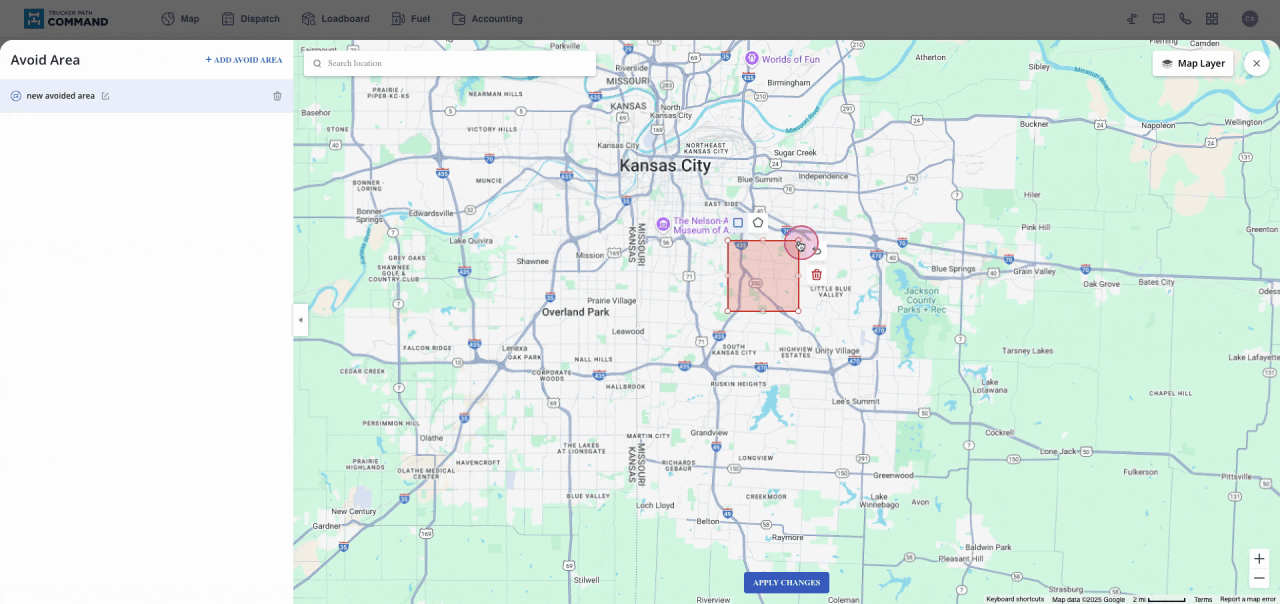

Step 8: Resize the square or change it to a polygon if needed. After setting this, click Apply Changes.

Step 9: You can add preferred lanes by selecting specific routes for drivers. Add waypoints on the map and hit Save.

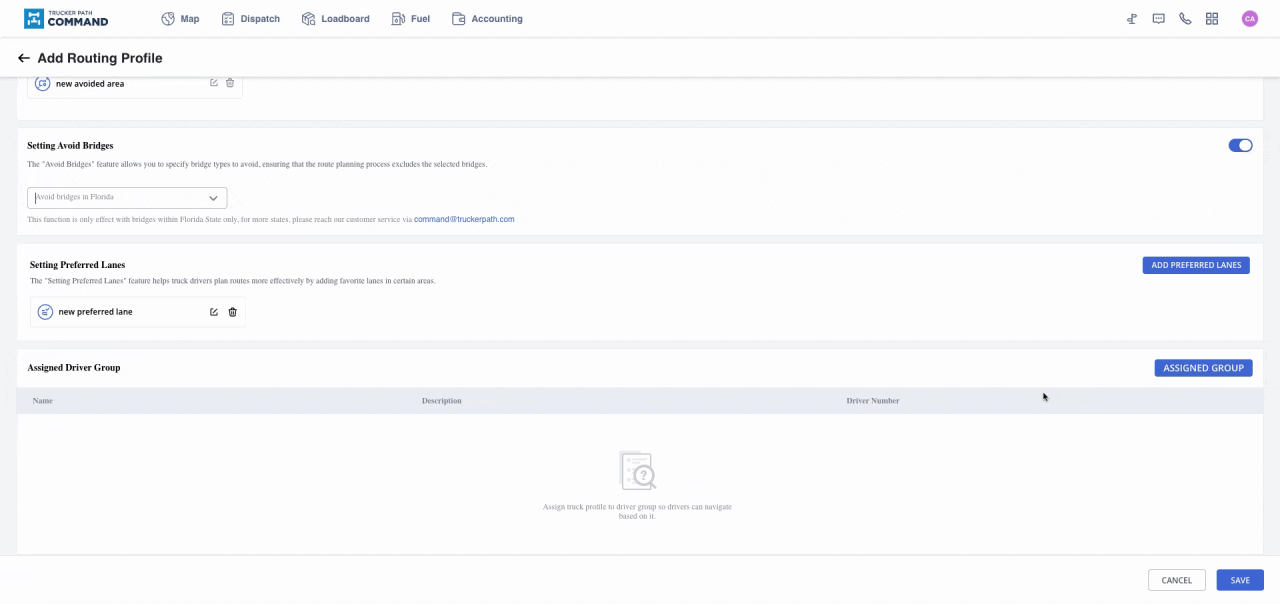

Step 10: Assign this routing profile to specific groups. Once completed, hit Save.

Step 11: Your new routing profile will now appear in your Routing Current routing Profile list.

To edit a previously created profile, right click on the Action button on the right hand side and click Edit. To remove a profile, click Delete.
